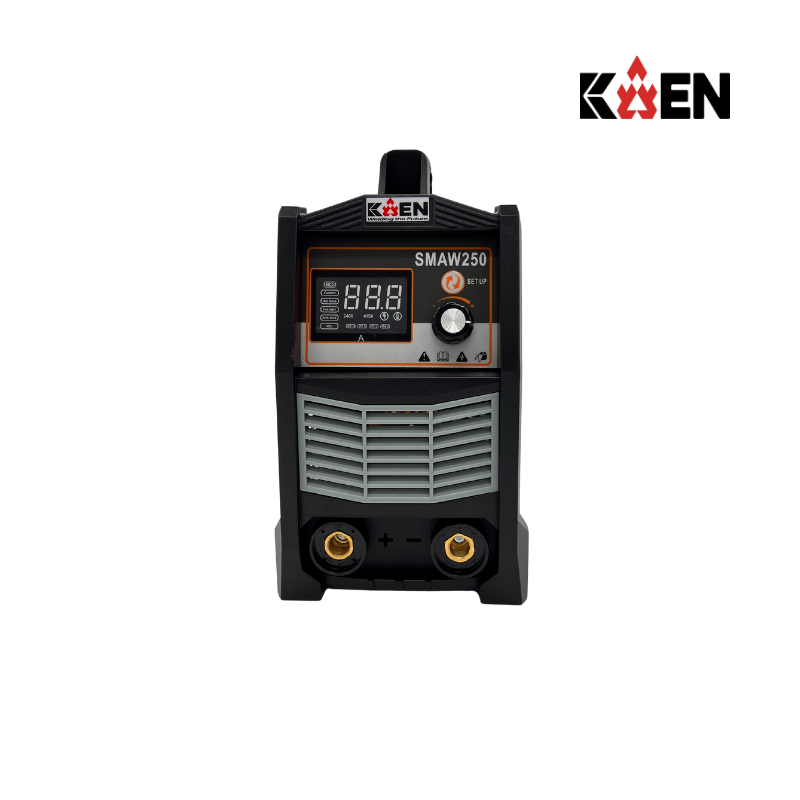

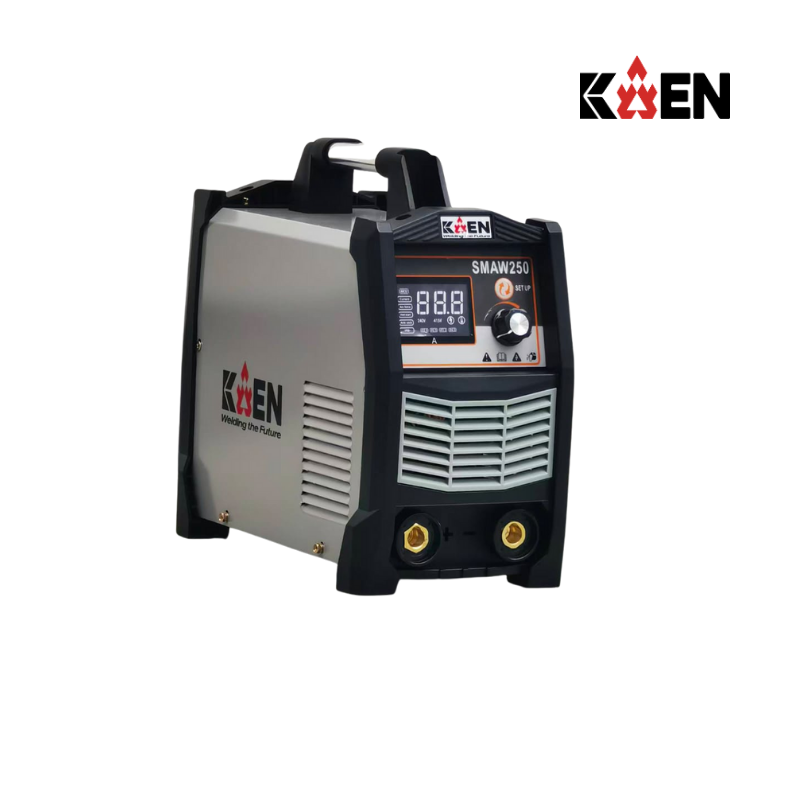

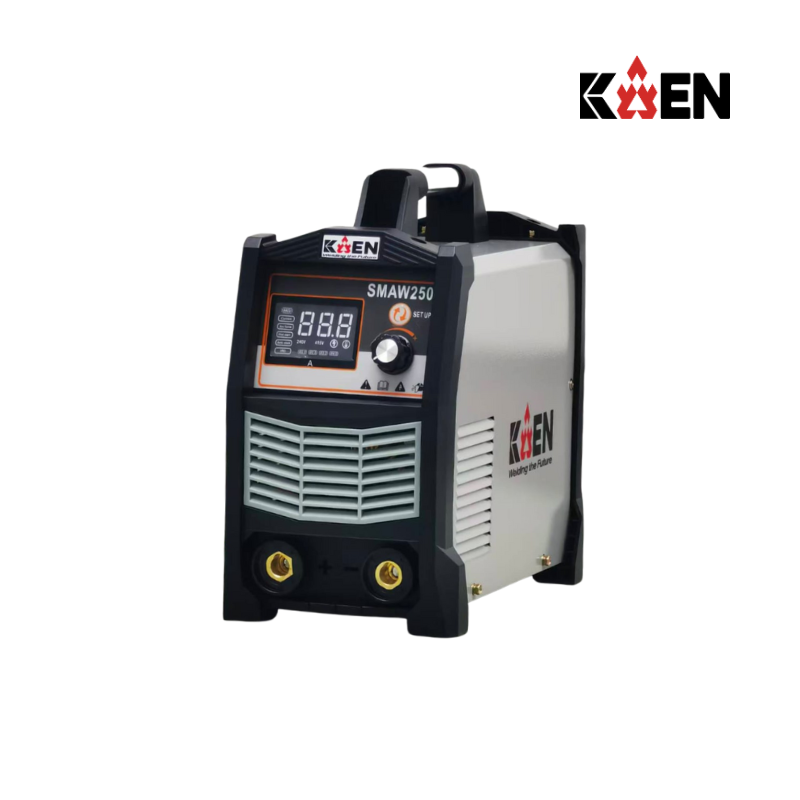

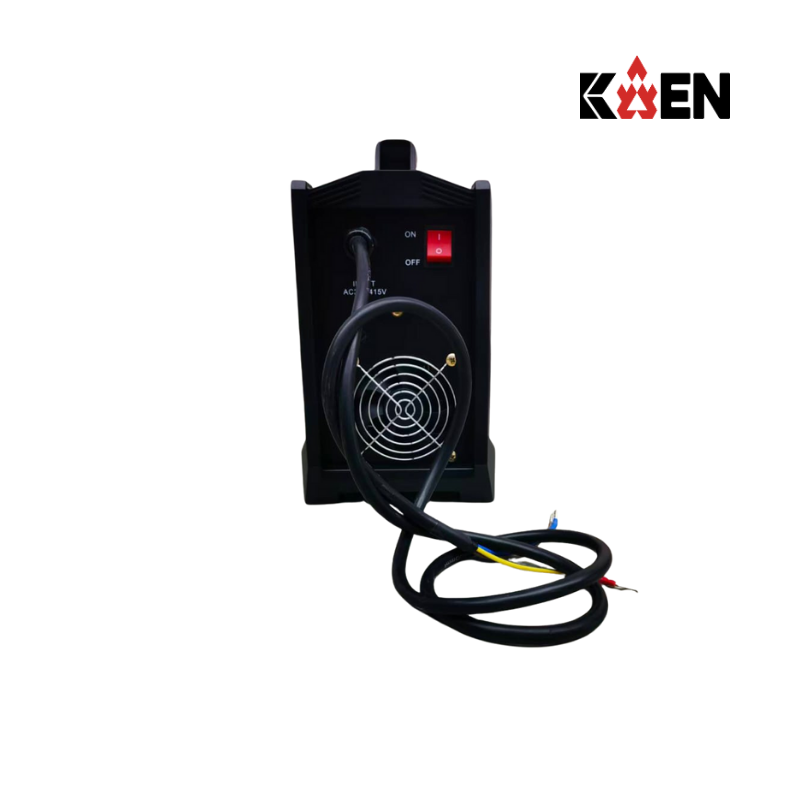

KAEN SMAW250 MMA Welding Machine

RM1,500.00

  • Advanced (IGBT) inverter technology
  • Light, Compact, Easy to operate
  • Output characteristics is similar with AC welder characteristics ; strong arc performance, good stiffness
  • High maximum output voltage fluctuation
Category: Tags: , Brand:
MODEL: KAEN SMAW250 MMA Welding Machine
FEATURES:
  • Delivers an excellent arc performance;
  • Extra light, compact and portable design;
  • Over-current protection and overload protection to ensure safety;
  • Ideal for light- and medium-duty daily welding applications;
  • Closed-loop feedback control, built-in fan and ultra-low voltage intelligent regulator, stable output voltage, easy to start in unstable voltage area.
  • An advanced IGBT inverter technology with a high duty cycle and an excellent ignition voltage make the welder more reliable and less prone to damage or failure.
  • Energy-saving and highly efficient. The inverter welding machine’s switch also operates fast and uses less energy to do the final operation.
  • An inner cooling fan protects the welding machine from overheating contributing to the life expectancy of the device.
  • The inner characteristic control; fast system response and quickly respond to changes in the arc length continuous arc
  • Using the peak current control mode -work reliably even under frequent short circuit impact power device
  • KAEN SMAW250 Ideal for welding stainless steel, alloy steel, carbon steel, and other metal materials.

PRODUCT WARRANTY
12 Months

CATALOGUE

Download Here

Technical Specification

Input Voltage (V)

AC240V±15%

Frequency (HZ)

50/60HZ

Rated Input Power (kvA)

11

Current Adjust Range (A)

30-250

25℃ Duty Cycle Output (%)

60%

Output No-load Voltage (V)

68

Efficiency (%)

80

Power factor

0.93

Insulation Class

F

Housing Protection Class

IP21S

Applicable Welding Rod Diameter (mm)

1.6-4.0

Net Weight (kg)

8

Packing Dimension (mm)

450mmx270mmmmx360mm

1. SMAW250 Welding Machine X 1
2. 3mtr welding cable with welding torch X 1
3. 3mtr welding cable with earth clamp X 1
4. Owner’s Manual x 1
