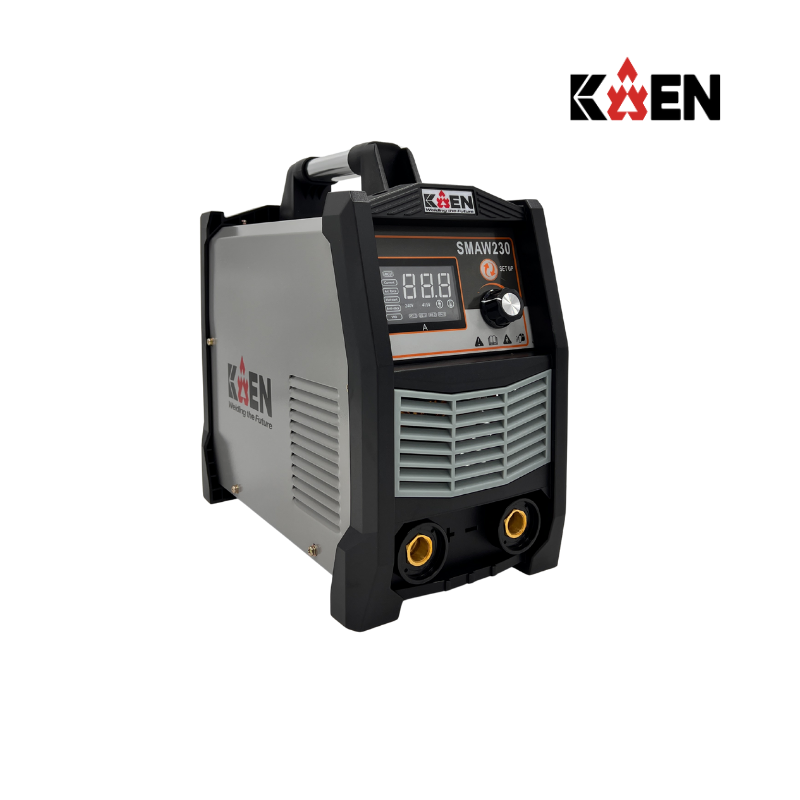

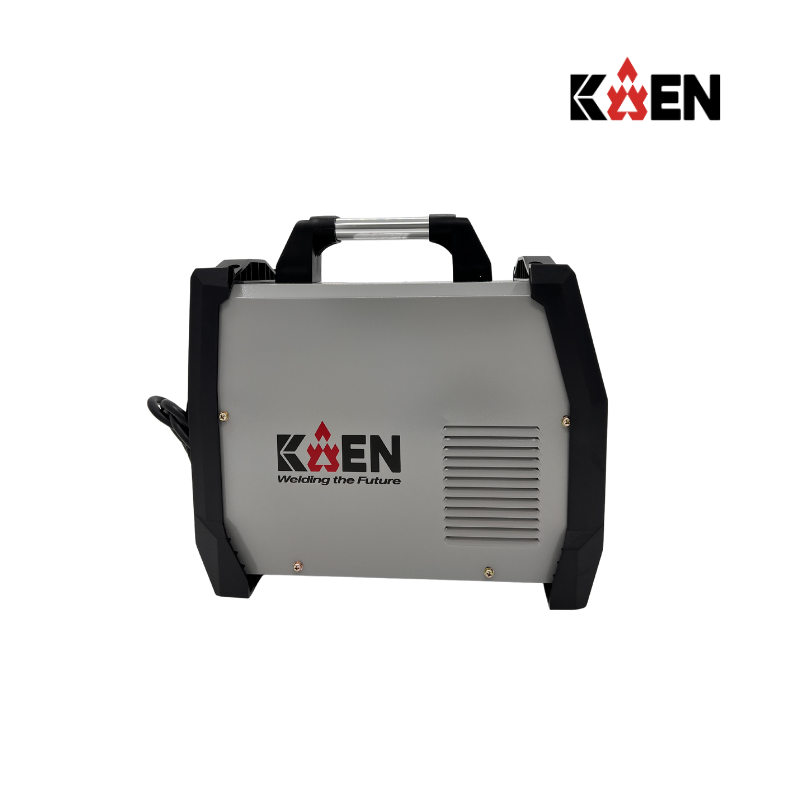

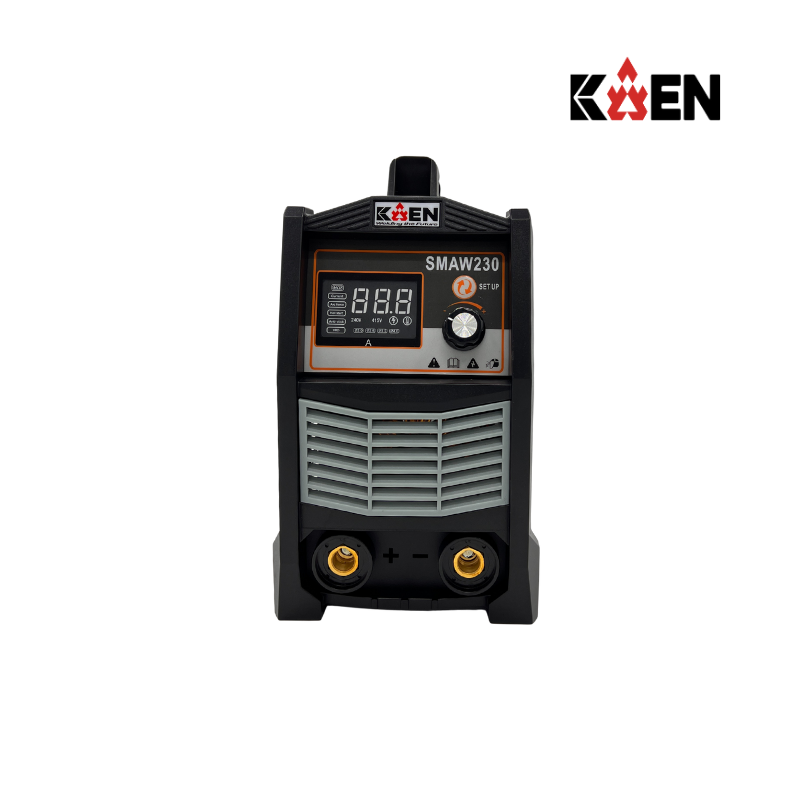

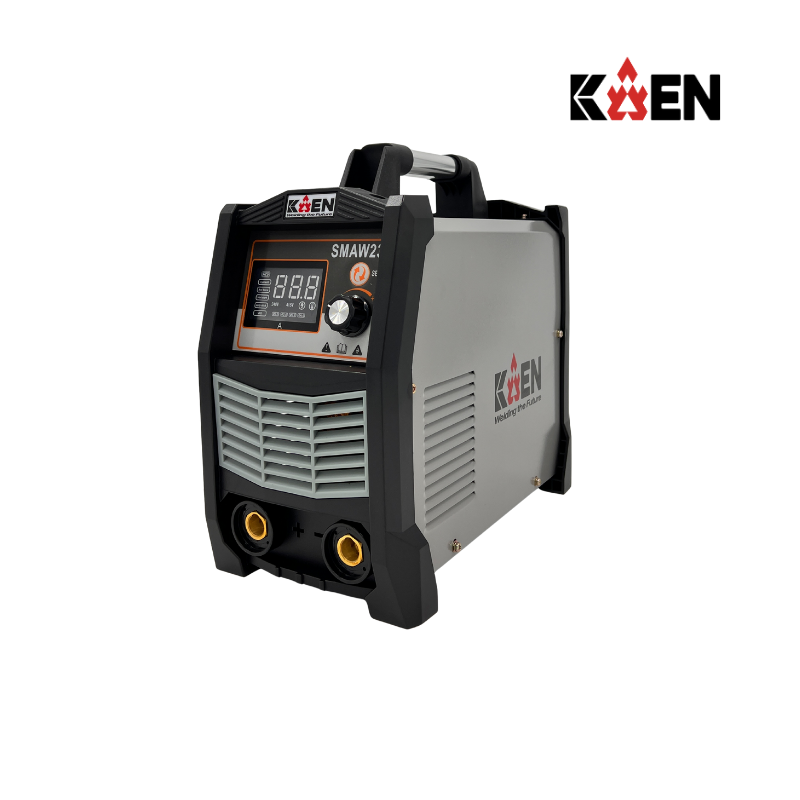

KAEN SMAW230 MMA Welding Machine

RM800.00

  • Advanced (IGBT)inverter technology
  • Light, Compact, Easy to operate
  • Output characteristics is similar with AC welder characteristics ; strong arc performance, good stiffness
  • High maximum output voltage fluctuation
  • The inner characteristic control; fast system response and quickly respond to changes in the arc length continuous arc
  • Using the peak current control mode -work reliably even under frequent short circuit impact power device
MODEL: KAEN SMAW230 MMA Welding Machine

FEATURES
  • Delivers an excellent arc performance;
  • Extra light, compact and portable design;
  • Over-current protection and overload protection to ensure safety;
  • Ideal for light- and medium-duty daily welding applications;
  • Closed-loop feedback control, built-in fan and ultra-low voltage intelligent regulator, stable output voltage, easy to start in unstable voltage area.
  • An advanced IGBT inverter technology, a high-duty cycle, and an excellent ignition voltage make the welder more reliable and less prone to damage or failure.
  • Energy-saving and highly efficient. The inverter welding machine’s switch also operates fast and uses less energy to do the final operation.
  • An inner cooling fan protects the welding machine from overheating, which increases its life expectancy.
  • KAEN SMAW230 is ideal for welding stainless steel, alloy steel, carbon steel, and other metal materials.
PRODUCT WARRANT

12 Months

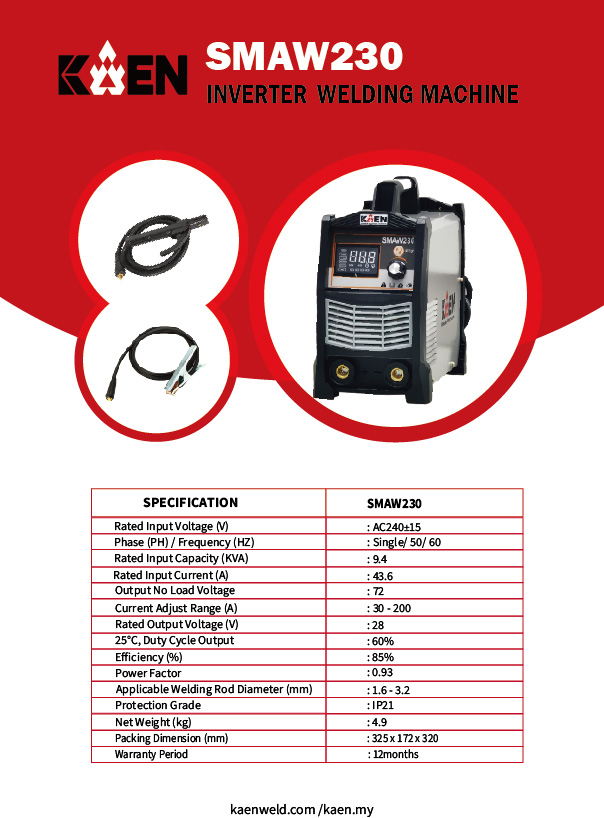

CATALOGUE

Download Here

Technical Specification

Input Voltage (V)

AC415V±15%

Phase

Three

Frequency (HZ)

50HZ

Rated Input Power (A)

9.6

Current Adjust Range (A)

20-300

40℃ 60% Duty Cycle Output

300

40℃ 100% Duty Cycle Output

230

No-load Voltage (V)

73

Efficiency (%)

85

Power factor

0.93

Insulation Class

F

Housing Protection Class

IP21S

Applicable Welding Rod Diameter (mm)

2.5-5.0

Net Weight (kg)

13.5

Packing Dimension (mm)

480x200x380

1. SMAW300I Welding Machine
2. Owner’s Manual X 1
