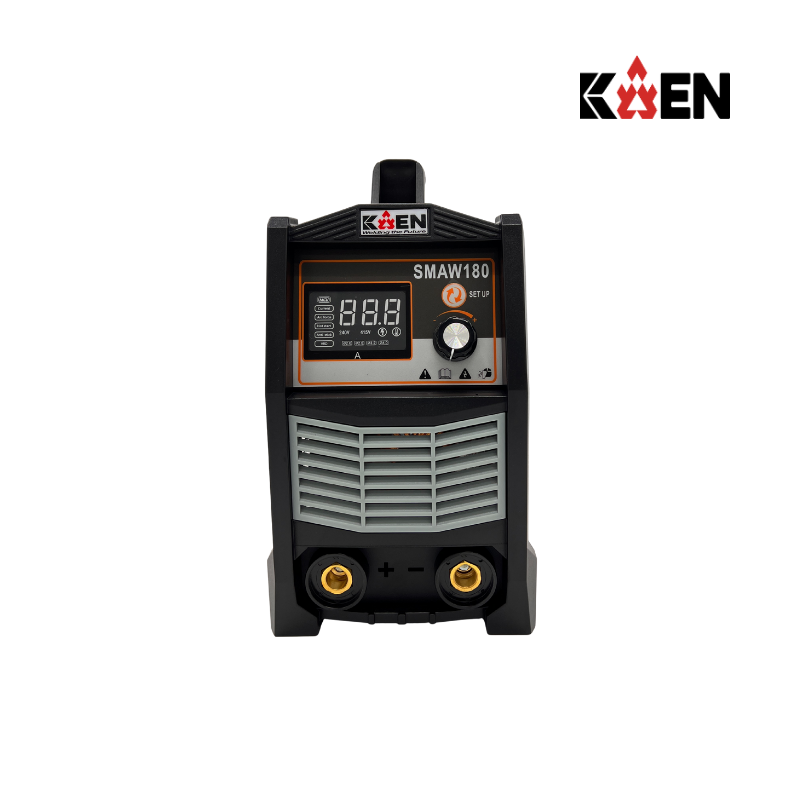

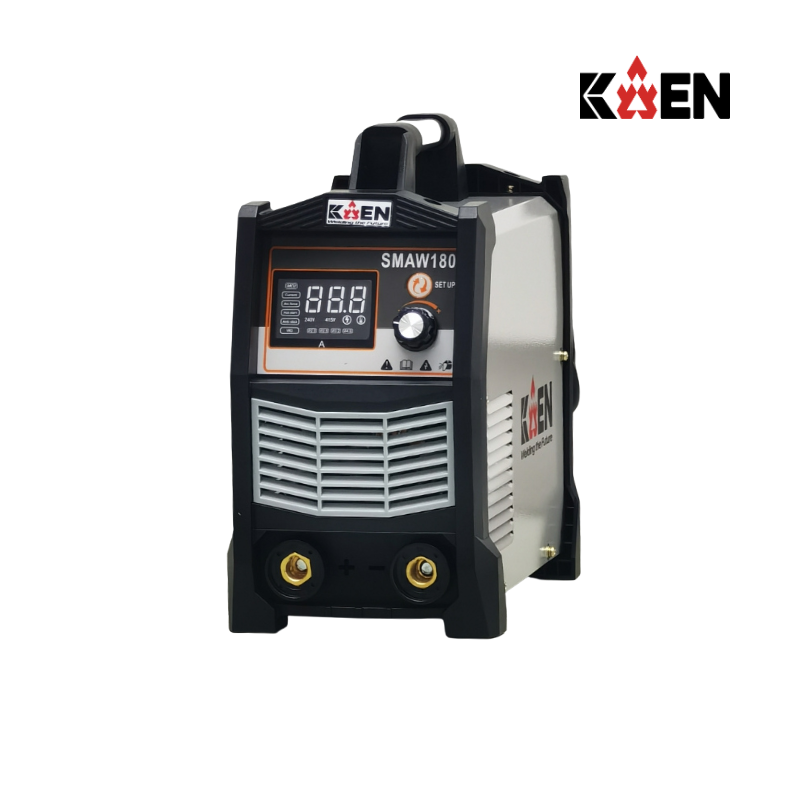

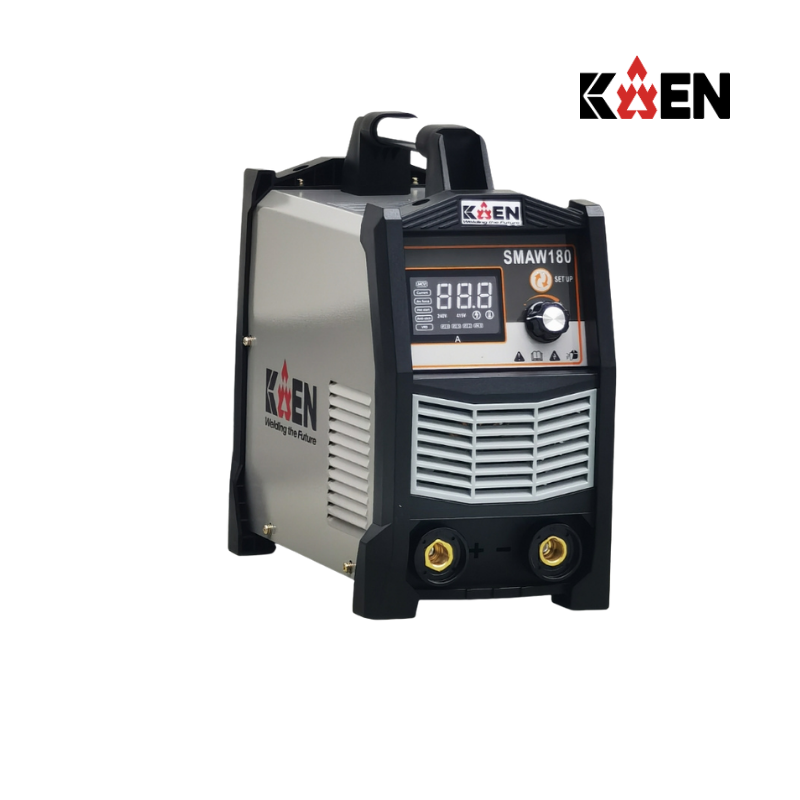

KAEN SMAW180 MMA Welding Machine

RM500.00

  • Advanced (IGBT)inverter technology
  • Light, Compact, Easy to operate
  • Output characteristics is similar with AC welder characteristics ; strong arc performance, good stiffness
  • High maximum output voltage fluctuation
Category: Tags: , , ,
MODEL: KAEN SMAW180 MMA Welding Machine
FEATURES
  • Digital monitor for viewing the welding current for precise work.
  • Non-stick and easy ignition mechanism.
  • An intelligent fan – completely quiet – turns on only when welding starts.
  • Easy to carry, tough and durable.
  • Optimal for welding steel, stainless steel, castings, brass, galvanized.
  • The machine has a particular circuit that protects against voltage surges and allows you to work with a generator of 7.2 KVA and above.
  • Professional and technical advice from welding experts.
  • The inner characteristic control: fast system response and quick response to changes in the arc length continuous arc
  • KAEN SMAW180 is using the peak current control mode -works reliably even under frequent short circuit impact power device
PRODUCT WARRANTY

12 Months

CATALOGUE

Download Here

Technical Specification

Input Voltage (V)

240V
Frequency (HZ)

AC240V±15％
Rated Input Power (A)

4.6
Current Adjust Range (A)

20-170
40℃ 60% Duty Cycle Output

170
40℃ 100% Duty Cycle Output

130
No-load Voltage (V)

65
Efficiency (%)

85
Power factor

0.93
Insulation Class

F
Housing Protection Class

IP21S
Applicable Welding Rod Diameter (mm)

2.5-3.2
Net Weight (kg)

6.2
Packing Dimension (mm)

350x130x280

1. SMAW170I Welding Machine
2. 3mtr welding cable with welding torch X 1
3. 3mtr welding cable with grounding clamp X 1
4. Owner’s Manual X 1
